Name: Maven RS5 Riflescope - 4-24x50 SFP
SKU: 64497
Availability: InStock

Maven RS5 Riflescope – 4-24×50 SFP

£80.00

The new Maven RS.5 4-24x50mm SFP – built for those who require the precision of long range dialing with the fine reticl…

The new Maven RS.5 4-24x50mm SFP – built for those who require the precision of long range dialing with the fine reticle benefits of a second focal plane.

Premium Model

Size: 14.4 in.

Weight: 25.5 oz.

Second Focal Plane

0.25 MOA/click or 0.1 MRAD/click

No-Shim Reset-able Zero Stop

2 reticle options: SHR-W (MOA), SHR-W (MIL)

10 Level Red Reticle Illumination

30mm Tube

Extra-Low Dispersion ED Glass

Exceptionally Clear, Bright, High Contrast Image

Excellent Color Fidelity

Phase Correction Coating

Waterproof and Fog Proof

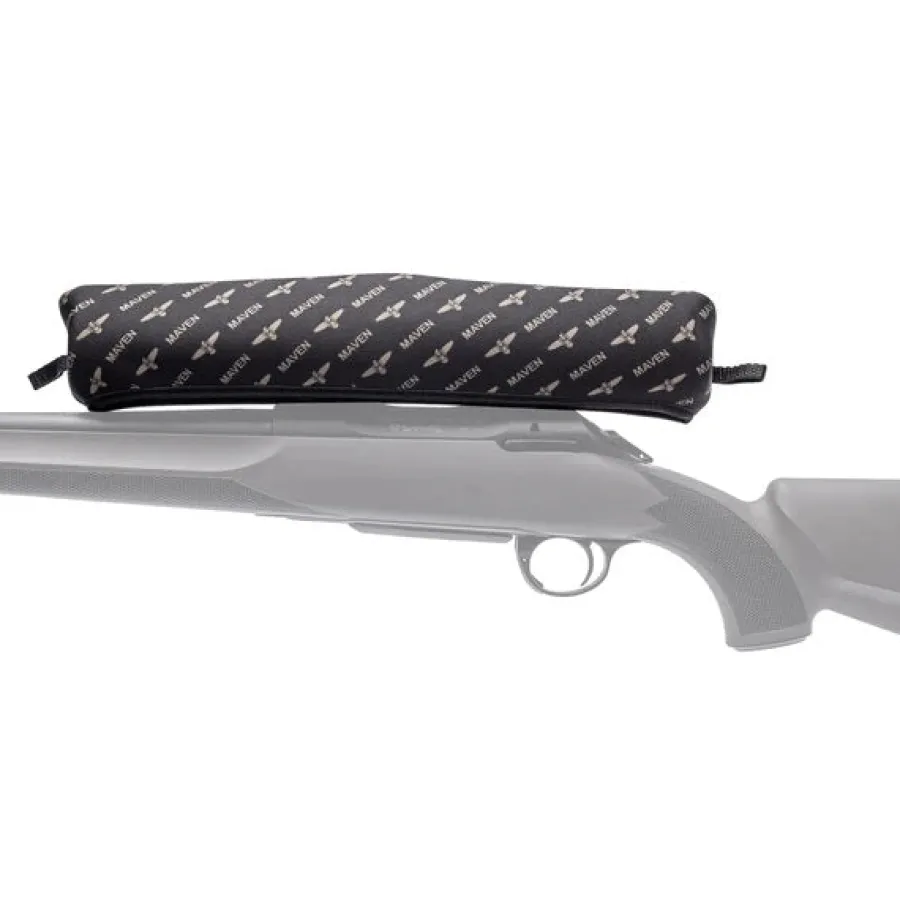

Includes Neoprene Cover

Lifetime Warranty

When we evaluated our RS Series lineup, a common refrain we heard from our customer base was the need for a solid long range scope that combined features of our top scopes in a second focal plane optical system that allowed for an easy-to-see reticle at all magnifications – enter the RS.5 4-24x50mm SFP.

For those seeking a long distance build that features broad magnification range, large tube diameter, large objective, and desire a straightforward and uncomplicated configuration, the RS.5 covers the bases both inside and out. Featuring both MOA and MIL reticle options, illuminated reticles, side parallax adjustment, robust dial-to-shoot elevation turret, capped windage turret, and mechanical zero stop, the RS.5 ensures the precision you’ve come to expect in a Maven rifle scope.

With an extensive magnification range and flexible elevation dialing, the RS.5 is our recommended rifle scope for long range hunters and shooters alike.

Just like all rifle scopes in the RS Series lineup, the RS.5 features crystal clear ED glass for exceptional clarity, smooth focus, precision-milled adjustments, solid click detents, and durable anodizing to resist heavy use.

The Maven RS Series represents our elite line of rifle scopes, designed to fit your specific needs, delivered for a fraction of the cost to comparable rifle scopes and stacks up with the most celebrated and expensive scopes in the world. Our modern sportsman inspired designs paired with the best available materials and state of the art technology create an uncompromising optic that meets the demands of the modern hunter.

RS.5 MOA			RS.5 MIL
Focal plane	Second
Magnification range	4x – 24x
Obj. lens diameter	50mm
Tube diameter	30mm / 1.8in
Objective outer diameter	59mm
Eyepiece outer diameter	43.6mm
Overall length	366mm / 14.41in
Weight (without battery)	25.5oz / 723g
Internal adjustment range (MOA/MIL)
Travel Elevation	100 MOA		29 MIL
Travel Windage	70 MOA		20.3 MIL
Click value	0.250 MOA		0.1 MIL
Adjustment per turret revolution	20 MOA		10 MIL
Parallax adjustment	10y – Infinity
Exit pupil diameter	@4x: 8.5mm	@24x: 2.1mm
Eye relief	@4x: 77-98mm	@24x: 86-98mm
Field of view @ 100y	@4x: 27.8ft	@24x: 4.6ft
Front/Rear mounting length	F: 53mm	R: 52mm
Effective objective lens diameter	@4x: 34.5mm	@24x: 50.0mm
Field of view	@4x: 5.31°	@24x: 0.88°
Field of view, apparent	@4x: 21°	@24x: 21°
Diopter correction (dpt)	+/-3
Light transmission	90.10%
Twilight factor	@4x: 14.1	@24x: 34.64
Functional temperature	-4°~158°F
Submersion tightness / waterproof rating	3m depth
Gas purged	Nitrogen
Reticle construction	Etched Glass

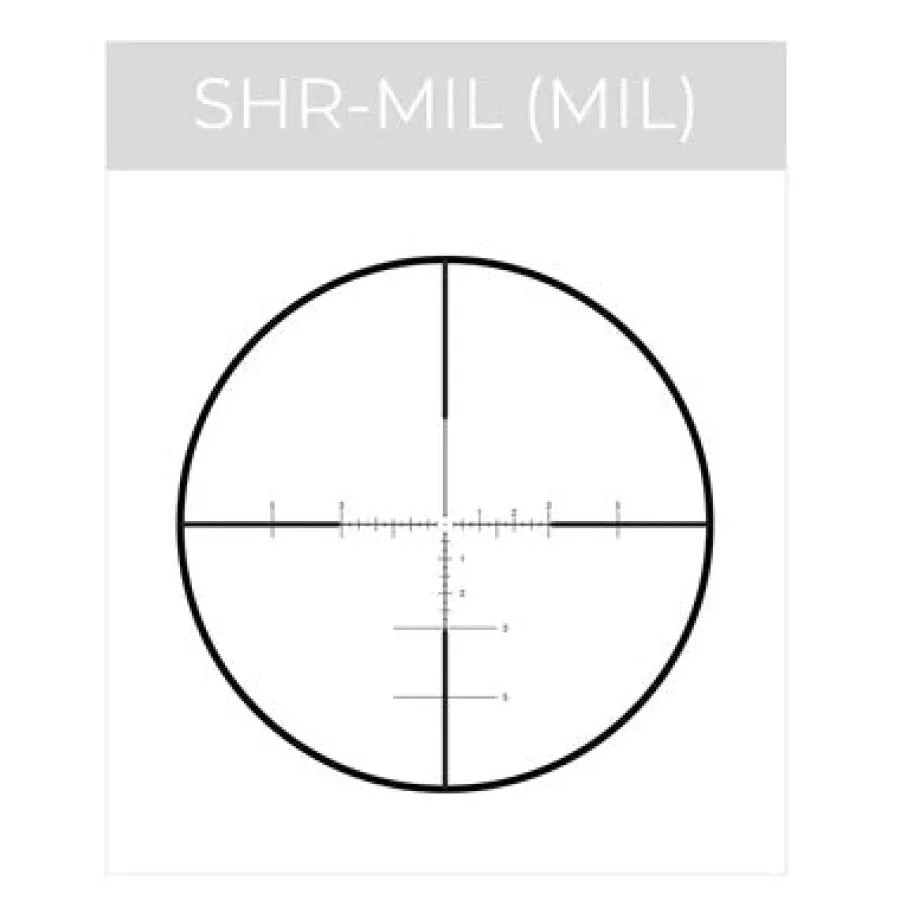

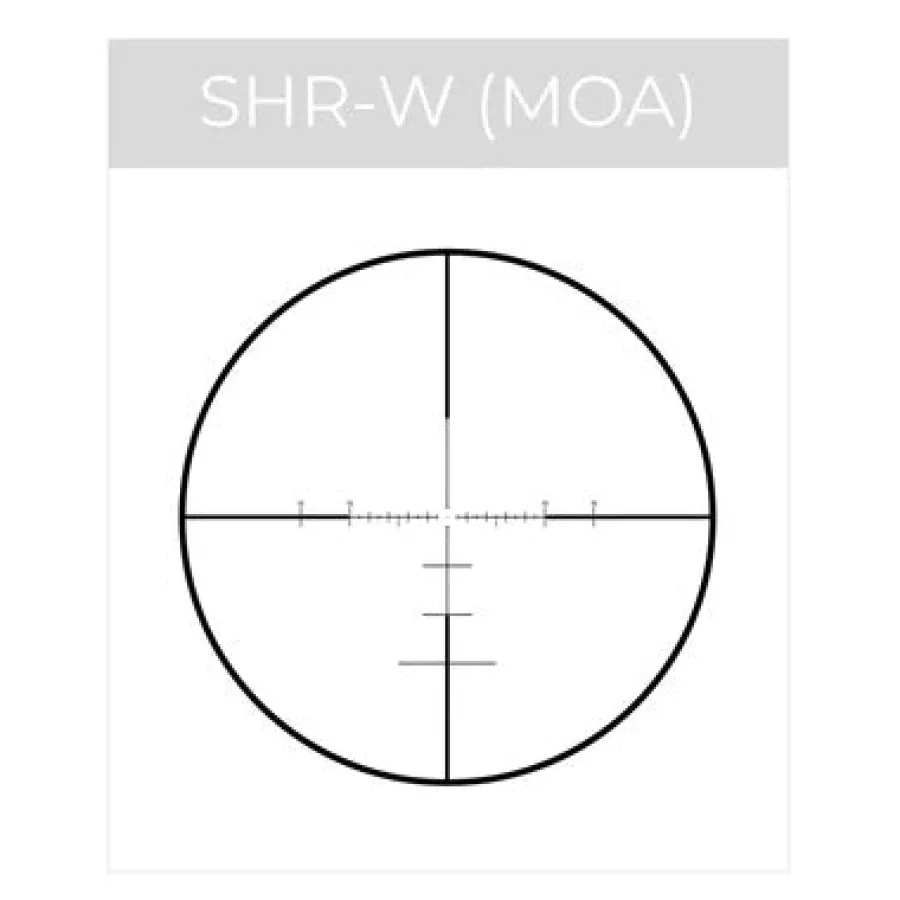

Reticle options	SHR-W		SHR-MIL
Illuminated reticle Y/N	Yes	Red
Origin	Made in Japan
