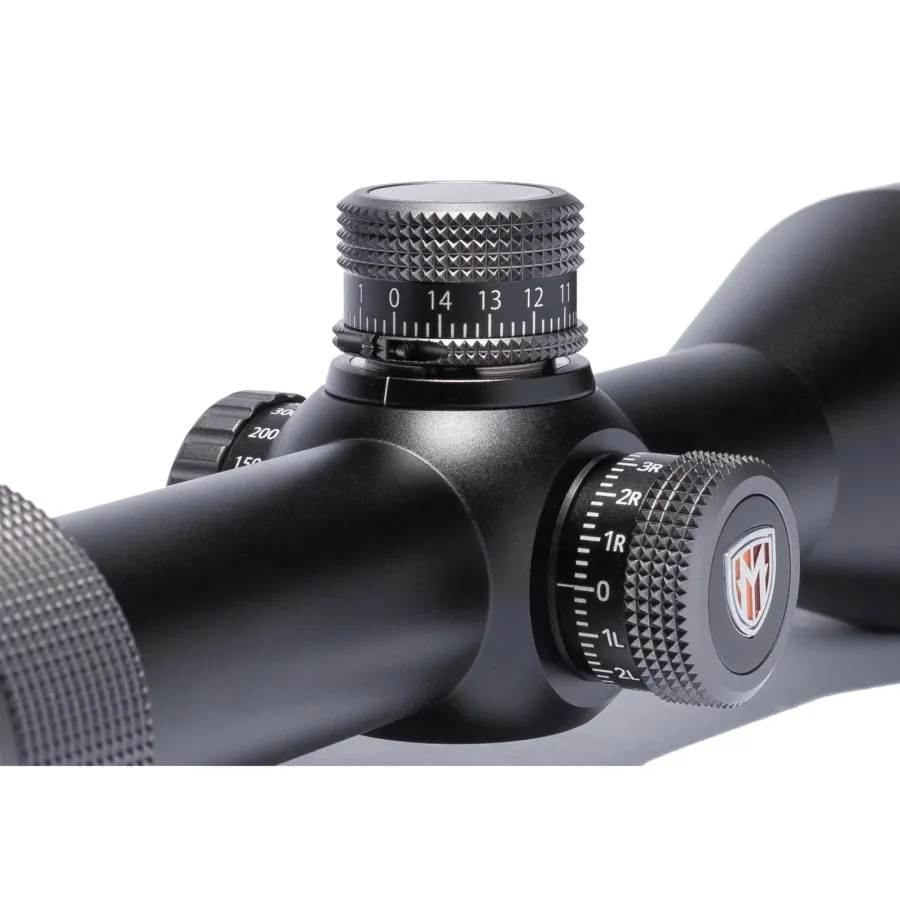

The Maven RS.3, a long-range scope designed for shooters and hunters who demand more from their rifle scope. With an expansive magnification range and detailed reticle options, the RS.3 maximizes precision. This rifle scope features a first focal plane, a 5-30x zoom range, side parallax adjustment, exposed turrets with toolless zero, lockable zero-stop, custom turret options, and is one of the lightest full-featured hunting scopes on the market. With a broad magnification range and precise dialing capabilities, the RS.3 is our recommended rifle scope for all western big game species.
Â
Just like all rifle scopes in the RS Series, the RS.3 features crystal clear ED glass for tack-sharp clarity, a silky focus mechanism, precision-milled adjustments, solid click detents, and durable anodizing to resist heavy use.
The Maven RS Series represents our elite line of rifle scopes, designed to fit your specific needs, delivered for a fraction of the cost to comparable rifle scopes and stacks up with the most celebrated and expensive scopes in the world. Our modern sportsman inspired designs paired with the best available materials and state of the art technology create an uncompromising optic that meets the demands of the modern hunter.
Â
| RS.3 MOA | RS.3 MIL | ||
| Focal plane | First | ||
| Magnification range | 5x – 30x | ||
| Obj. lens diameter | 50mm | ||
| Tube diameter | 30mm / 1.18in | ||
| Objective outer diameter | 59mm | ||
| Eyepiece outer diameter | 43.6mm | ||
| Overall length | 331mm / 13.03in | ||
| Weight (without battery) | 26.9oz / 764g | ||
| Internal adjustment range (MOA/MIL) | |||
| Â Â Travel Elevation | 80Â MOA | 23Â MIL | |
| Â Â Travel Windage | 50 MOA | 14.8Â MIL | |
| Click value | 0.250 MOA | 0.1 MIL | |
| Adjustment per turret revolution | 15Â MOA | 6Â MIL | |
| Parallax adjustment | 20y – Infinity | ||
| Exit pupil diameter | @5x: 8.9mm | @30x: 1.7mm | |
| Eye relief | @5x: 76-96mm | @30x: 86-96mm | |
| Field of view @ 100y | @5x: 22.2ft | @30x: 3.7ft | |
| Front/Rear mounting length | F: 45mm | R:Â 62.6mm | |
| Effective objective lens diameter | @5x: 44.5mm | @30x: 50mm | |
| Field of view | @5x: 4.24° | @30x: 0.71° | |
| Field of view, apparent | @5x: 21° | @30x: 21° | |
| Diopter correction (dpt) | +/-3 | ||
| Light transmission | 90.00% | ||
| Twilight factor | Â Â Â Â @5x:Â 14.9 | @30x:Â 38.7 | |
| Functional temperature | -4°~158°F | ||
| Submersion tightness / waterproof rating | 3m depth | ||
| Gas purged | Nitrogen | ||
| Reticle construction | Etched Glass | ||

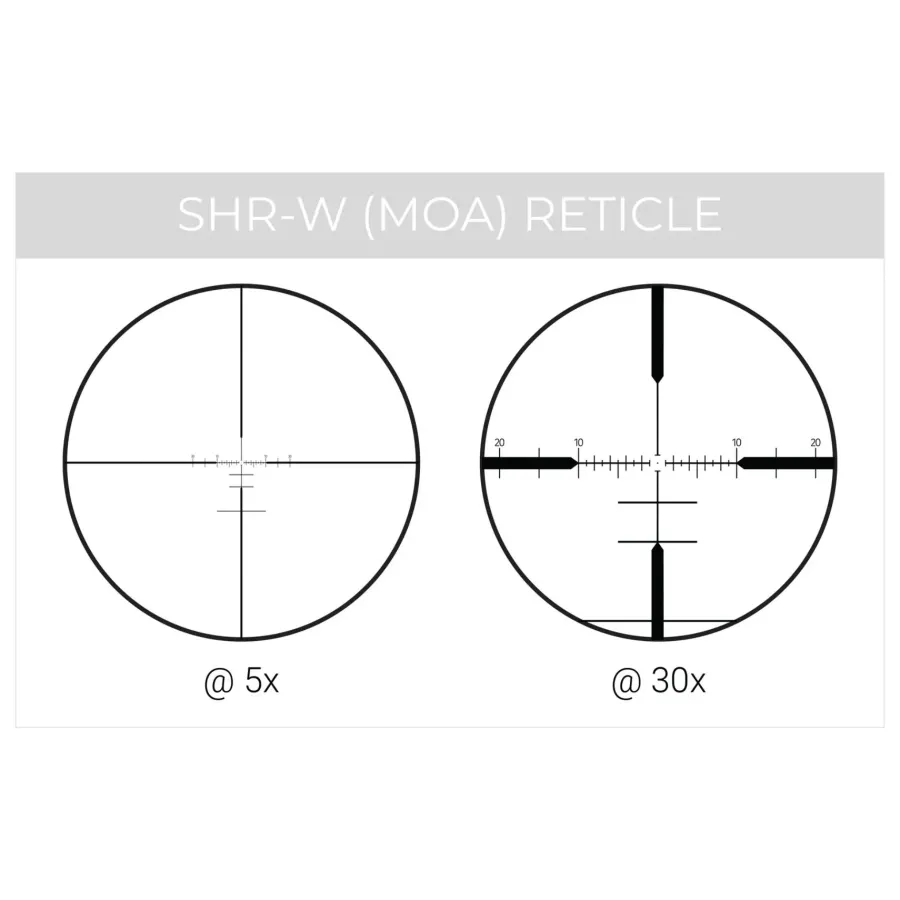

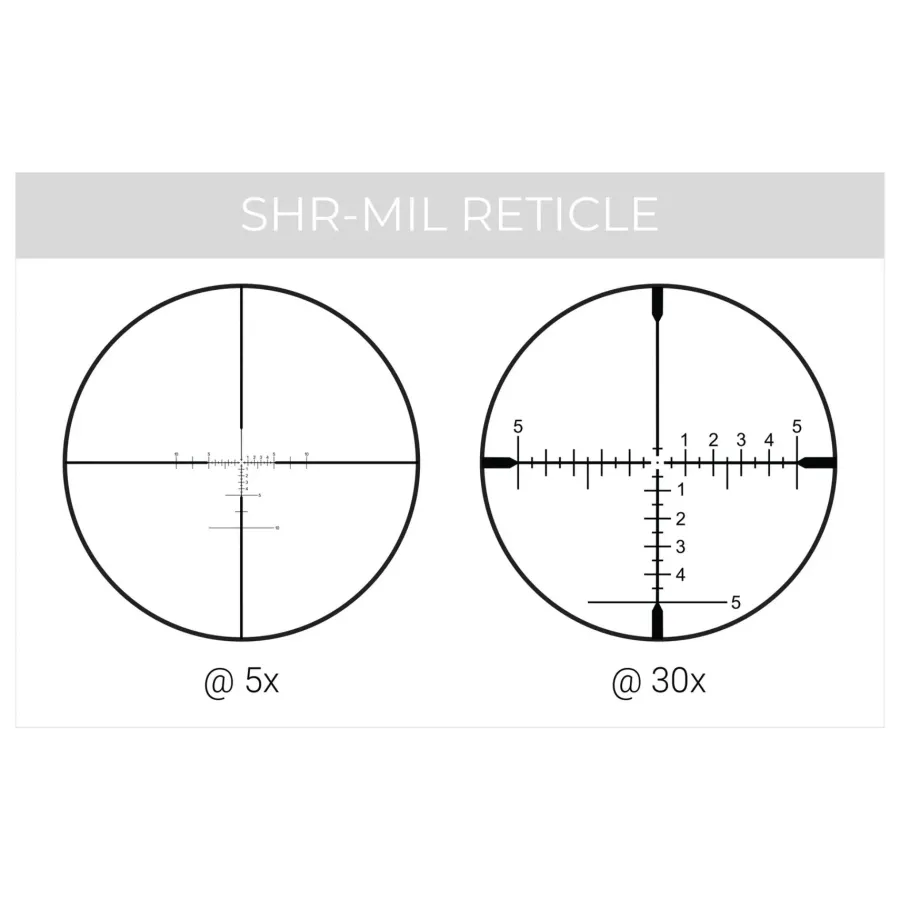

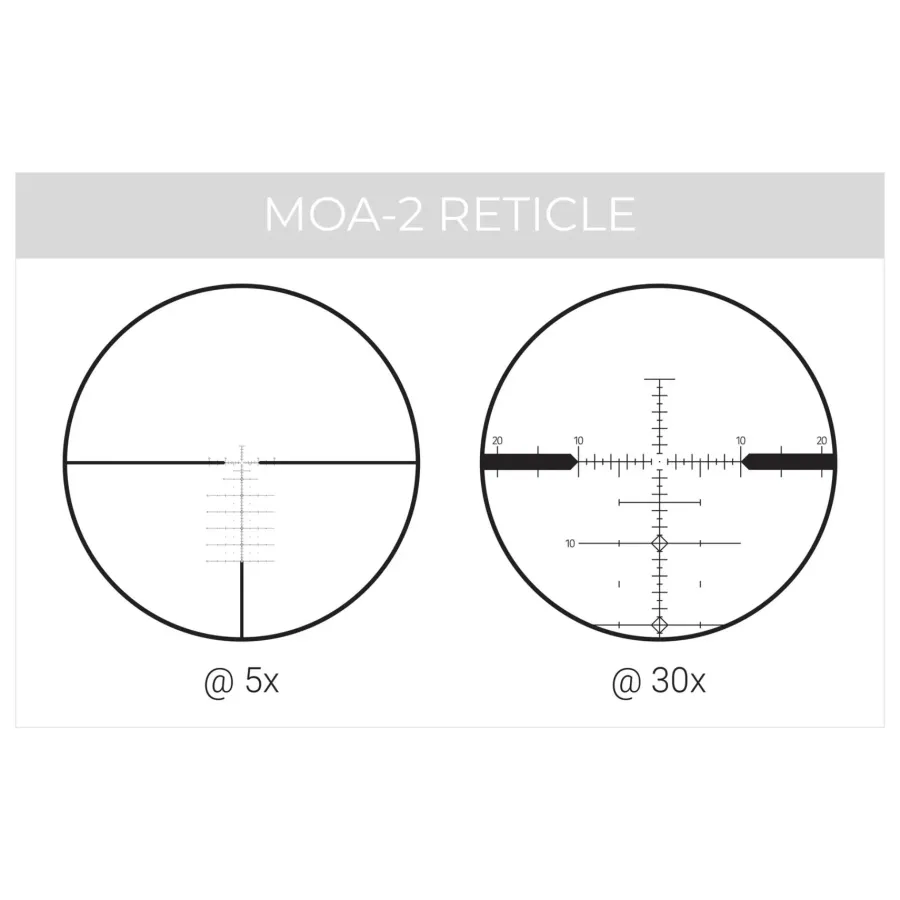

| Reticle options | MOA-2 / SHR-W | SHR-MIL | |
| Illuminated reticle Y/N | No | ||
| Origin | Made in Japan |
Â
| Size | SHR-W(MOA), MOA-2(MOA), SHR-MIL(MIL) |
|---|
